PCIe-6323
$1,500.00
Item details
Supported Power Input: Bus Powered
Maximum Number of Single-Ended Analog Input Channels: 32
Maximum Number of Differential Analog Input Channels: 16
Maximum Sample Rate: 250 kS/s
Simultaneous Sampling: No
Analog Input Resolution: 16 bits
Bus Connector: PCI Express
Front Connection Type: VHDCI, VHDCI
Number of Analog Output Channels: 4
Maximum Update Rate: 900 kS/s
Number of Bidirectional Digital Channels: 48
Number of Counters/Timers: 4
Analog Input Absolute Accuracy: 2200 μV
Analog Input FIFO Buffer Size: 4095 samples
Analog Input Isolation: –
Enclosed: Yes
13
People watching this product now!
-
Warranty 1 year
-
Free 30-Day returns
付款方式：

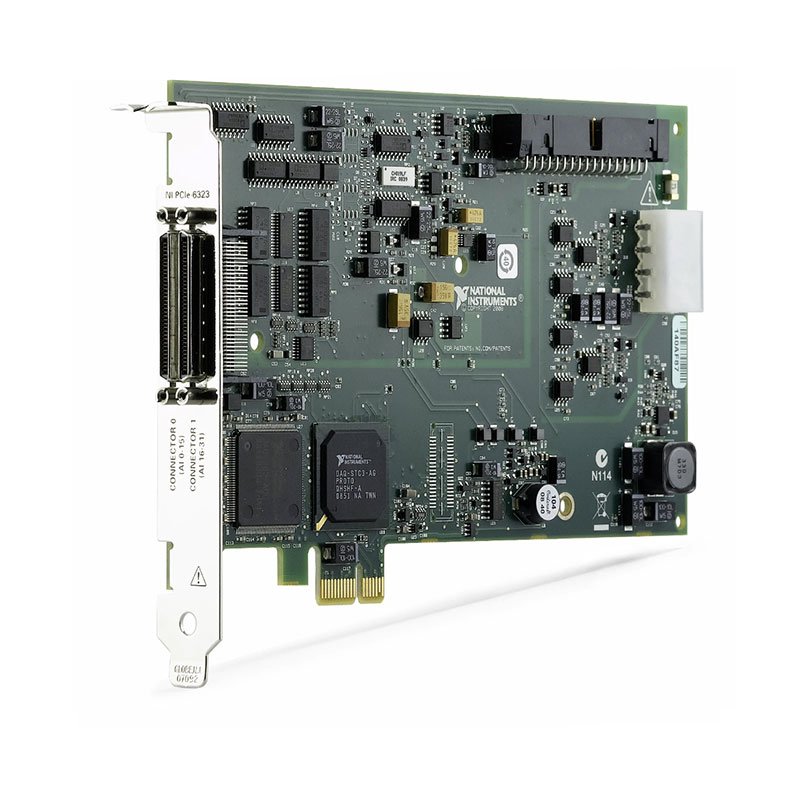

PCIe-6323 Multifunction I/O Device Description
PCI Express, 32 AI (16-Bit, 250 kS/s), 4 AO (900 kS/s), 48 DIO Multifunction I/O Device
The PCIe‑6323 offers analog I/O, digital I/O, and four 32‑bit counters/timers for PWM, encoder, frequency, event counting, and more. The device delivers high-performance functionality leveraging the high-throughput PCI Express bus and multicore-optimized driver and application software. Onboard NI‑STC3 timing and synchronization technology delivers advanced timing functionality, including independent analog and digital timing engines and retriggerable measurement tasks. The PCIe‑6323 is well-suited for a broad range of applications, from basic data logging to control and test automation. The included NI‑DAQmx driver and configuration utility simplify configuration and measurements.
Part Number(s): 781045-01
