PXI-6521
$1,200.00
Item details
Bus Connector: PXI Hybrid
Single-Ended Digital I/O Channel Current Drive: 2 A
Digital I/O Logic Levels: 24 V
Number of Digital Input Only Channels: 8
Number of Digital Output Only Channels: 8
Number of Bidirectional Digital Channels: –
Digital Input Voltage Range: -30 V to 30 V
Output Voltage Range: 0 V to 150 V
Maximum Clock Rate: –
Signaling Type: Single-Ended
20
People watching this product now!
-
Warranty 1 year
-
Free 30-Day returns
付款方式：

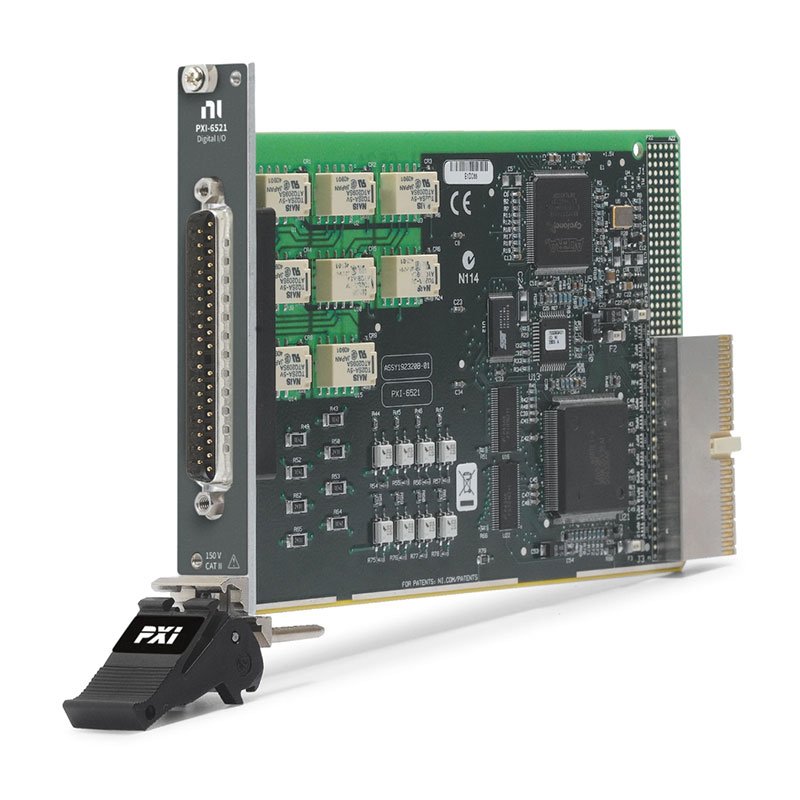

NI PXI-6521 Digital I/O Module Description
16-Channel, ±30 VDC, 8 Sink/Source Inputs, 8 Relay Outputs, Isolated PXI Digital I/O Module
The PXI‑6521 is an industrial digital I/O module with high channel isolation and industry-standard 24 V logic levels. For added safety, the PXI‑6521 requires a keyed connector. If a computer or application fault occurs, the PXI‑6521 can use digital I/O watchdogs to switch to a configurable safe output state to ensure detection and safe recovery from fault conditions. It also features programmable power-up states, digital filtering, and change detection for optimal control over your application.
Part Number(s): 779313-01
