PXIe-4300
$1,200.00
Item details
Maximum Sample Rate: 250 kS/s/ch
Analog Input Voltage Range: -1 V to 1 V, -10 V to 10 V, -150 V to 150 V, -2 V to 2 V, -30 V to 30 V, -300 V to 300 V, -5 V to 5 V, -60 V to 60 V
Analog Input Isolation: 300 V Ch-Ch Isolation
Maximum Number of Differential Analog Input Channels: 8
Analog Input Resolution: 16 bits
Discrete Low-Pass Filter: 10 kHz, 100 kHz
Filtering: Butterworth
10
People watching this product now!
-
Warranty 1 year
-
Free 30-Day returns
付款方式：

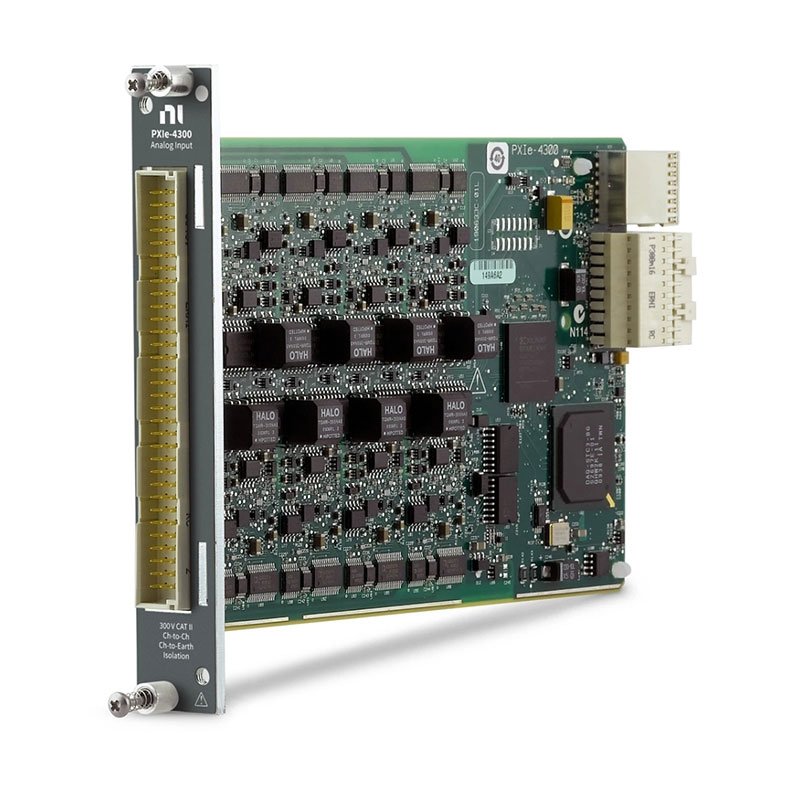

NI PXIe-4300 Analog Input Module Description
16-Bit, 8-Channel, 250 kS/s, 300 V, Ch-Ch Isolated PXI Analog Input Module
The PXIe‑4300 provides integrated data acquisition and signal conditioning for high-voltage measurements. It provides increased accuracy, simultaneous sampling, and synchronization features for scalable measurement systems. The PXIe‑4300 includes 300 Vrms channel‑to‑channel CAT II isolation and 3,300 Vrms channel‑to‑earth 5 second withstand isolation to protect users and equipment from hazardous voltages. This module offers programmable lowpass filtering, DC input coupling, and two PFI lines for digital input triggering. The included NI‑DAQmx driver simplifies hardware and configuration and measurement.
Part Number(s): 781337-01
Specification
Overview
| Brand |
National Instruments |
|---|
Related Products
In stock
Original price was: $1,888.00.$888.00Current price is: $888.00.
In stock
Original price was: $5,880.00.$2,580.00Current price is: $2,580.00.
