PXIe-5122
$1,200.00
Item details
Bus Connector: PXI Express
Analog Input Impedance: 1 MOhm, 5 Ohm
Oscilloscope Maximum Bandwidth: 10 MHz
Maximum Sample Rate: 10 MS/s
Analog Input Voltage Range: -1 V to 1 V
Analog Input Resolution: 14 bits
FPGA: –
Number of Voltage Input Channels: 2
CableSense™: No
20
People watching this product now!
-
Warranty 1 year
-
Free 30-Day returns
付款方式：

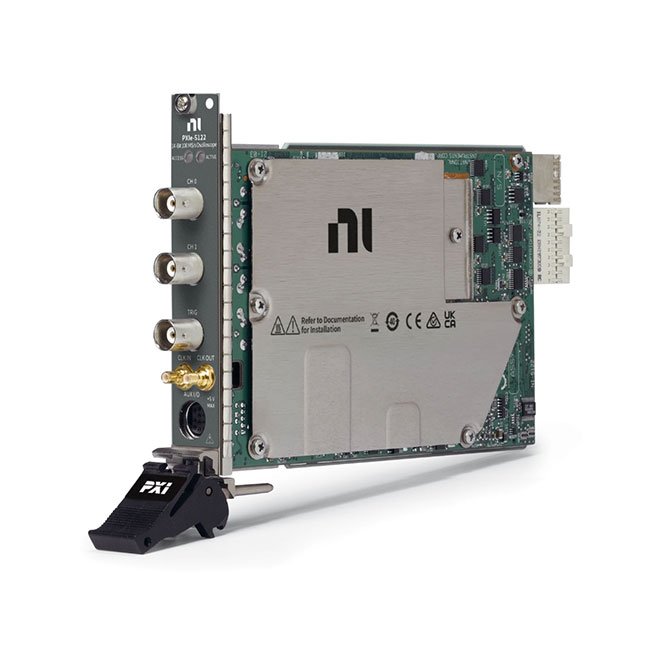

NI PXIe-5122 Oscilloscope Description
PXIe, 10 MHz, 10 MS/s, 14-Bit PXI Oscilloscope
The PXIe‑5122 high-resolution PXI oscilloscope has two channels with greater than 75 dBc spurious‑free dynamic range (SFDR) and flexible settings for coupling, impedance, voltage range, and filtering. PXI oscilloscopes also feature a number of triggering modes, deep onboard memory, and an instrument driver that includes data streaming and analysis functions. This device is ideal for both time-domain and frequency-domain applications that require high-resolution, low-noise measurements with up to 10 MS/s and 10 MHz of analog bandwidth. The PXIe‑5122 also features advanced PXI synchronization and data streaming capabilities.
Part Number(s): 779967-03 | 779967-02 | 779967-01
Specification
Overview
| Brand |
National Instruments |
|---|
