PXIe-5164
$1,200.00
Item details
Bus Connector: PXI Express
Analog Input Impedance: 1 MOhm, 5 Ohm
Oscilloscope Maximum Bandwidth: 40 MHz
Maximum Sample Rate: 1 GS/s
Analog Input Voltage Range: -5 V to 5 V
Oscilloscope Onboard Memory Size: 1.5 GB
Analog Input Resolution: 14 bits
FPGA: Kintex-7 410T
Number of Voltage Input Channels: 2
CableSense™: No
15
People watching this product now!
-
Warranty 1 year
-
Free 30-Day returns
付款方式：

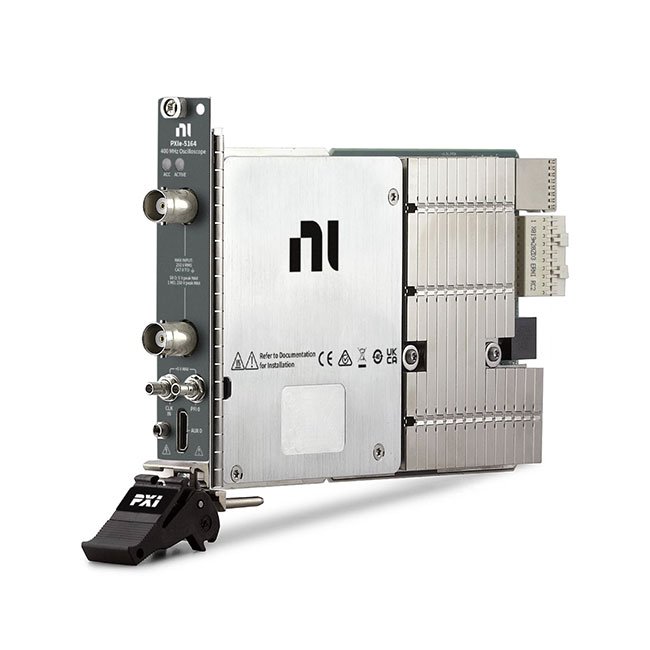

NI PXIe-5164 Oscilloscope Description
PXIe, 40 MHz, 1 GS/s, 14-Bit PXI Oscilloscope
The PXIe‑5164 high-speed oscilloscope has two channels that sample at up to 1 GS/s with flexible settings for coupling, voltage range, and filtering. PXI oscilloscopes also feature a number of triggering modes, deep onboard memory, and an instrument driver that includes data streaming and analysis functions. This device is ideal for applications with fast signals that require up to 40 MHz of analog bandwidth and flexible measurement configurations for up to 25 V. The PXIe‑5164 also features a user-programmable FPGA as well as PXI synchronization and data streaming capabilities.
Part Number(s): 784183-01
