PXIe-6349
$1,200.00
Item details
Maximum Number of Single-Ended Analog Input Channels: 0
Analog Input Resolution: 16 bits
Maximum Sample Rate: 500 kS/s/ch
Number of Analog Output Channels: 2
Maximum Update Rate: 900 kS/s
Bus Connector: PXI Express
Number of Bidirectional Digital Channels: 24
Electrical Signal Measured: Voltage
Analog Input FIFO Buffer Size: 4095 samples
Maximum Number of Differential Analog Input Channels: 32
Current Flow Direction: –
Simultaneous Sampling: Yes
Analog Input Absolute Accuracy: 3225 μV
Number of Counters/Timers: 4
14
People watching this product now!
-
Warranty 1 year
-
Free 30-Day returns
付款方式：

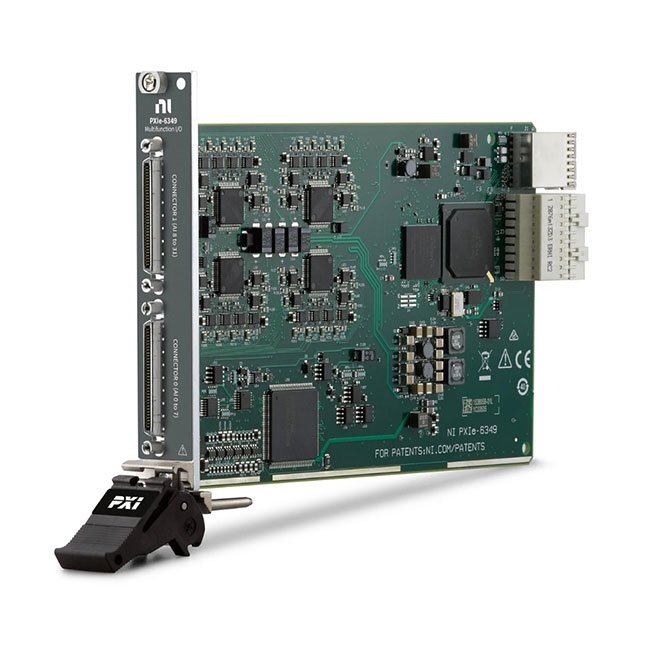

NI PXIe-6349 Multifunction I/O Module Description
PXIe, 32 AI (16-Bit, 500 kS/s/ch), 2 AO, 24 DIO, PXI Multifunction I/O Module
The PXIe-6349 offers analog I/O, digital I/O, and four 32-bit counter/timers for PWM, encoder, frequency, event counting, and more. The device delivers high-performance functionality leveraging the high-throughput PCI Express bus and multicore-optimized driver and application software. Onboard NI-STC3 timing and synchronization technology delivers advanced timing functionality, including independent analog and digital timing engines and retriggerable measurement tasks. The PXIe-6349 is well-suited for a broad range of applications, from basic data logging to control and test automation. The included NI-DAQmx driver and configuration utility simplify configuration and measurements.
Part Number(s): 785808-01
Specification
Overview
| Brand |
National Instruments |
|---|
