PXIe-6535
$1,200.00
Item details
Bus Connector: PXI Express
Single-Ended Digital I/O Channel Current Drive: 32 mA
Digital I/O Logic Levels: 2.5 V, 3.3 V, 5 V TTL
Number of Digital Input Only Channels: –
Number of Digital Output Only Channels: –
Number of Bidirectional Digital Channels: 32
Digital Input Voltage Range: -1 V to 6 V
Output Voltage Range: 0 V to 5 V
Maximum Clock Rate: 10 MHz
Signaling Type: Single-Ended
20
People watching this product now!
-
Warranty 1 year
-
Free 30-Day returns
付款方式：

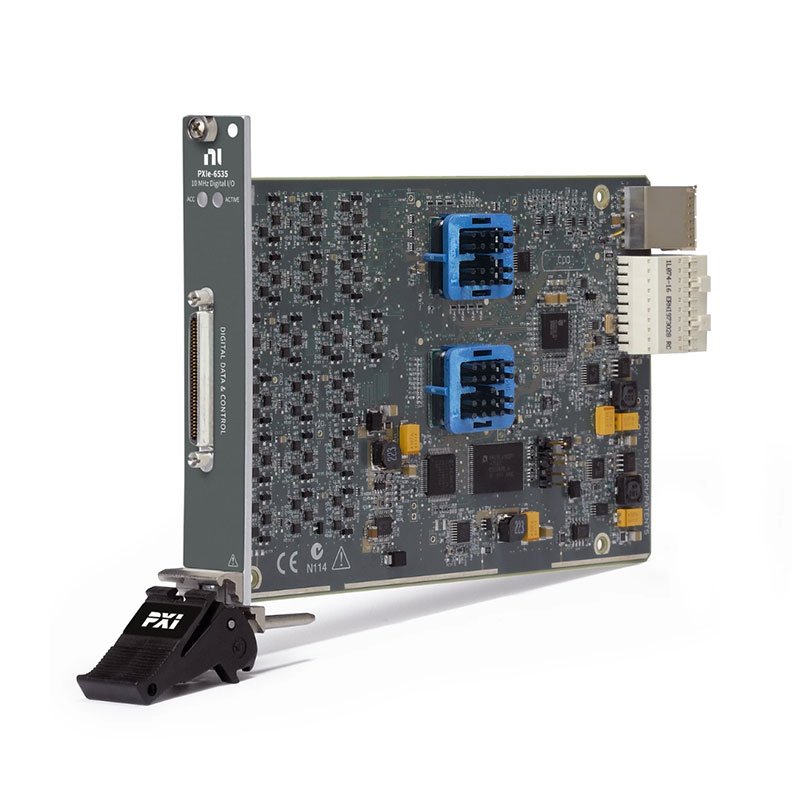

PXIe-6535 Description
32-Channel, 10 MHz, 40 MB/s PXI Digital I/O Module
The PXIe‑6535 can continuously stream data over the PXI Express bus. It’s an ideal solution for interfacing and testing image sensors or display panels. The module is also well-suited for other common digital applications such as pattern I/O, change detection, protocol emulation, or other custom digital interfacing. It features selectable voltage levels and per-channel directional control of the digital lines.
Part Number(s): 780695-01
Specification
Overview
| Brand |
National Instruments |
|---|
