USB-6451
$1,200.00
Item details
Supported Power Input: Bus Powered
Maximum Number of Single-Ended Analog Input Channels: 16
Maximum Number of Differential Analog Input Channels: 8
Maximum Sample Rate: 1 MS/s/ch
Simultaneous Sampling: Yes
Analog Input Resolution: 20 bits
Bus Connector: USB C
Number of Analog Output Channels: 2
Maximum Update Rate: 250 kS/s/ch
Number of Bidirectional Digital Channels: 16
Number of Counters/Timers: 4
Analog Input Absolute Accuracy: 1.3 mV
Analog Input FIFO Buffer Size: 8191 samples
Analog Input Isolation: –
13
People watching this product now!
-
Warranty 1 year
-
Free 30-Day returns
付款方式：

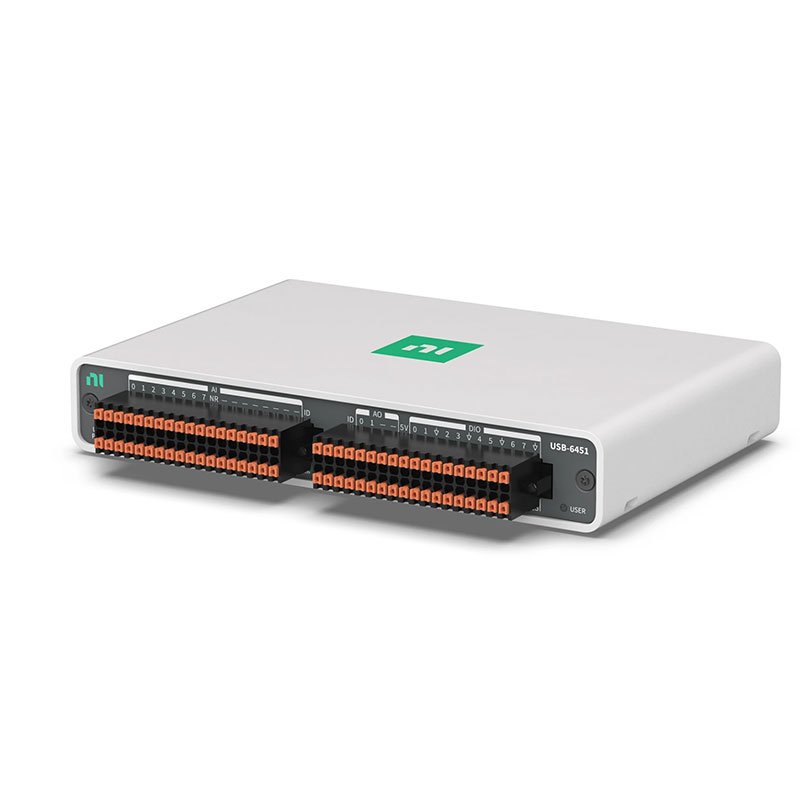

USB-6451 Multifunction I/O Device Description
20-bit, 1MS/s/ch (16 AI, 2 AO, 16 DIO) mioDAQ, USB Multifunction I/O Device
The USB-6451 is a USB Type-C bus-powered mioDAQ device with analog I/O, digital I/O, and four counters. It features 8 simultaneous sampling analog-to-digital converters (ADCs) with four input range settings from ± 200 mV to ± 10 V, to help you optimize the resolution of your measurements. The analog output channels can output ± 10 V with update rates of 250 kS/s/ch. Additionally, the USB-6451 digital I/O channels can function as static input or output channels, hardware-timed channels up to 10 MHz, or as triggers, clocks, or I/O for the four onboard counters. The USB-6451 also supports FlexLogger Lite, free data acquisition software from NI, and includes documented APIs and examples for LabVIEW, Python, C/C++, and more.
Part Number(s): 789889-01 | 789888-01
